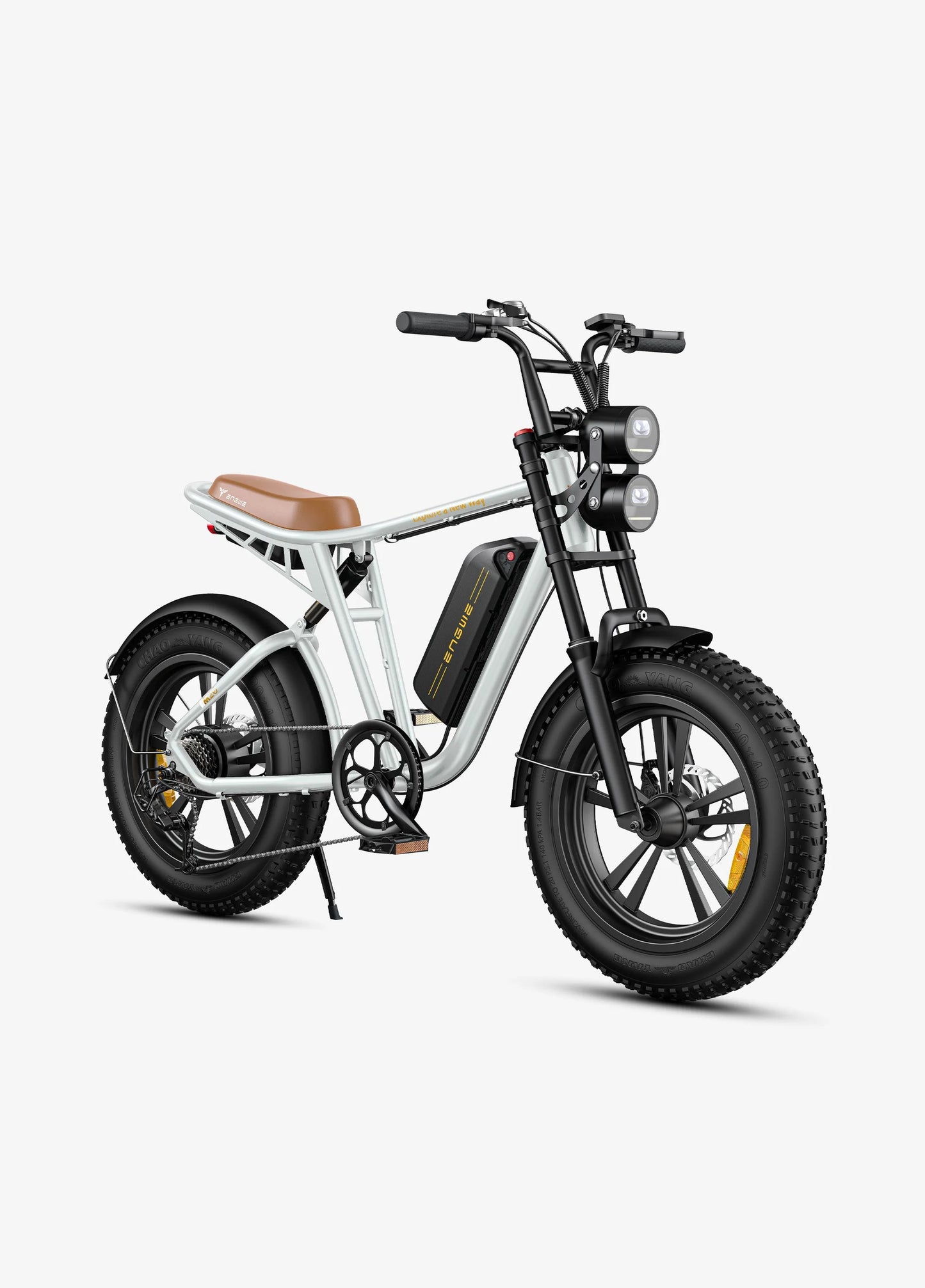

Designed for both urban commutes and off-road adventures, this dual suspension e-bike delivers power, comfort, and an extended riding range. Equipped with a 48V 1000W peak brushless hub motor and Shimano 7-speed drivetrain, it ensures smooth performance on any terrain. Choose between 13Ah or 26Ah battery options to achieve up to 75KM+ range in PAS mode
Key Features:
Dual Suspension System – Absorbs shocks for a comfortable ride
Powerful 1000W Peak Motor – Handles tough terrain with ease
Shimano 7-Speed Drivetrain – Adapts to various riding conditions
Long-Range Battery Options – 13Ah or 26Ah for extended travel
Fat Tires (20 x 4.0") – Improved traction on all terrains
LCD Display – Monitor speed, mileage, and battery life
Technical Specifications:
- Material: 6061 Aluminum Alloy
- Motor: 48V 1000W (Peak) Brushless Hub Motor
- Torque: 55 N.m (Why Torque Matters?)
- Tires: 20 x 4.0" Fat Tires
- Top Speed: 25KM/H
- Maximum Climbing Degree: 10°

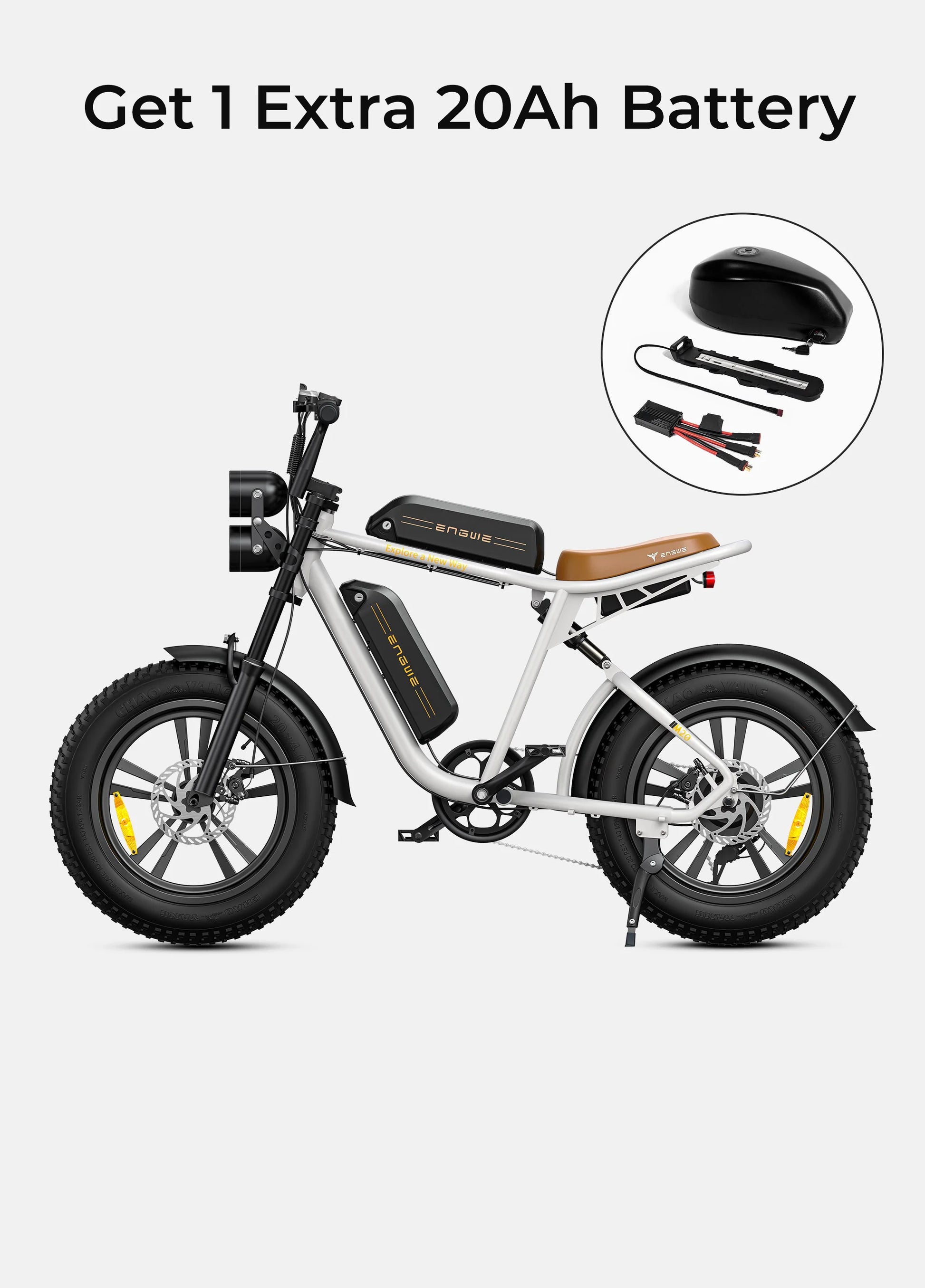

Battery Options:
- 13Ah Version: 48V 13Ah Lithium-Ion Battery (Single)
- 26Ah Version: 48V 13Ah Lithium-Ion Battery (Dual)
Mileage:
- 35KM (Throttle Only)
- 75KM (PAS Mode 1)
Other Components:
- Brakes: 160mm Front & Rear Disc Mechanical Brakes
- Transmission: Shimano 7-Speed Gears
- Display: LCD Display
Bike & Package Dimensions:
- Bike Weight: 76.72lbs (34.8KG)
- 13Ah Version Gross Weight: 94.13lbs (42.7KG)
- 26Ah Version Gross Weight: 104.05lbs (45.9KG)
- Rider Height: 5.0 ft – 6.8 ft
- Payload Capacity: 120KG (264lbs)
Bike Measurements:
- A - Height: 114CM
- B - Total Length: 167CM
- C - Reach: 37CM
- D - Standover Height: 76.2CM
- E - Wheelbase: 115.2CM
- F - Min Saddle Height: 84CM
